C3 AI Workflows Configuration Guide

Setting up workflows

The workflow authoring agent is automatically deployed as part of the Quick Start script. All Genai.Workflow.NodeTemplate instances seeded in the "default_toolkit" Genai.Workflow.NodeTemplateToolkit are available out-of-the-box.

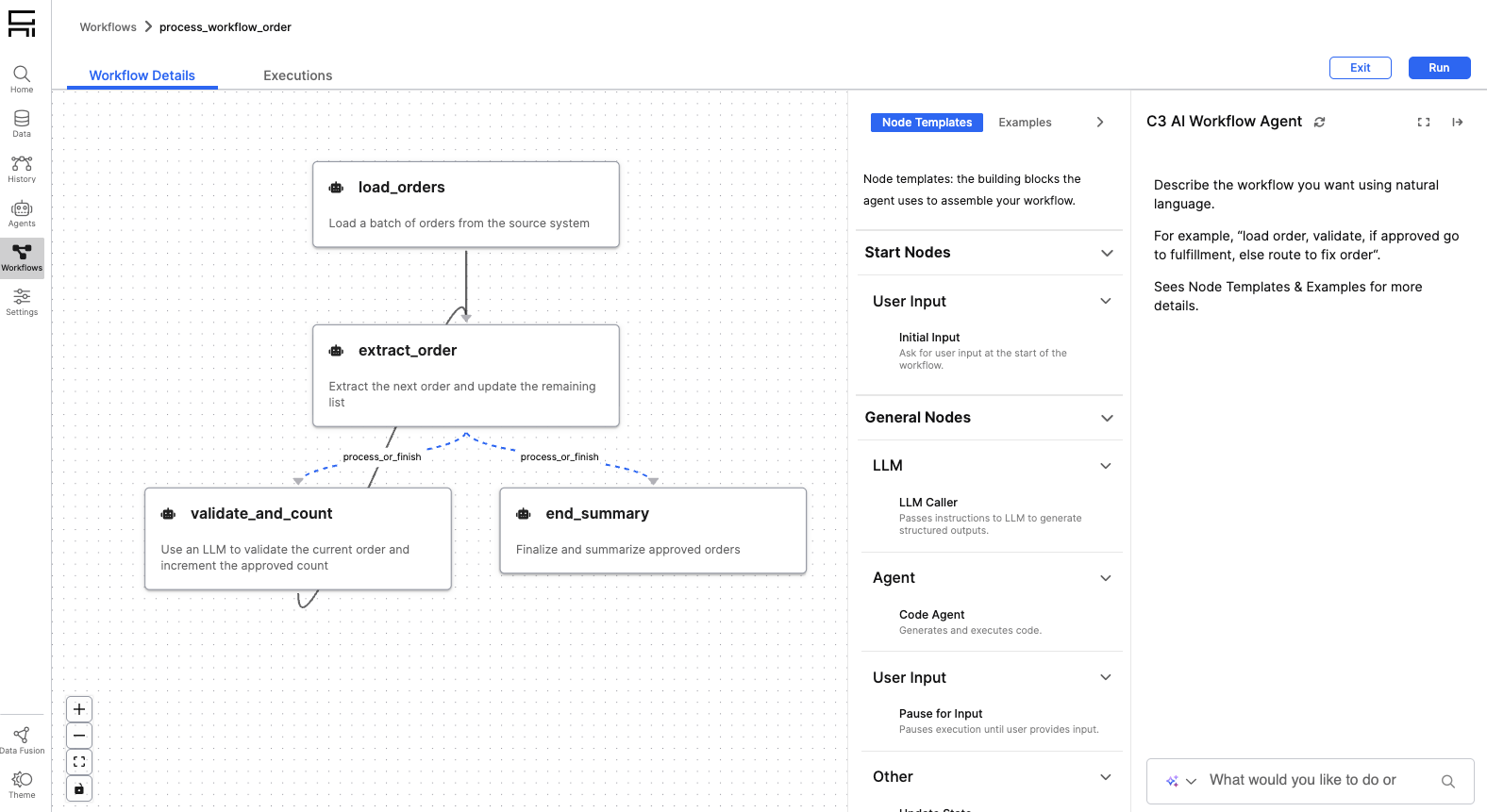

You can view the available node templates directly from the workflows authoring UI by expanding the "Node Templates & Examples" panel.

Authoring UI

Adding new node templates

You can add custom node templates to the default toolkit, which will apply to newly created workflows.

Agent node templates

To automatically generate node templates for each new agent deployment, run

Text
Genai.Workflow.Config.setConfigValue('createNodeTemplatesForAgentDeployments', true)

When enabled, node templates for deployed agents are dynamically added to a workflow during workflow creation. Note that these templates are not persisted to the default Genai.Workflow.NodeTemplateToolkit.

Authoring custom node templates

To create custom node templates, follow the step-by-step guide in: 02-Making-Custom-NodeTemplates.ipynb

Best practices:

  • Avoid creating too many node templates — large template sets can make the workflow authoring prompt overly large and reduce performance.
  • If a node template outputs a native Python type, ensure it’s correctly mapped in Genai.Workflow.Config#nativeToResourceMap so it can be displayed in the UI.

Inputs

Workflows can be defined with either of the following input types:

  • No inputs: for example, a workflow that begins with user input or an internet search.
  • A single C3 Type input: for example, an alert-processing workflow that takes a single instance of a C3 Type entity such as Alert.c3typ as input.

C3 Type Inputs

All types available through:

Text
Genai.StructuredData.DataModelGraph.forName("default")

can be used in workflows.

Testing and scheduling

When testing a workflow from the UI that accepts a C3 Type input, the most recently created entity of that type is passed automatically.

When scheduling a workflow, it will run automatically for newly created entities within the last X minutes, where X is configurable in the UI.

Custom execution

You can execute a workflow that takes an entity as an input programmatically — for example, in an afterUpdate hook — using the following snippet:

Text
input = workflow.getRequiredInputForAsyncAction(obj)
workflow.executeWorkflow(null, input)

Example C3 Type input: File inputs

Workflows can be triggered automatically for new files.

To enable this behavior:

  1. Add the Genai.SourceFile type to the list of whitelisted types
  2. Create a new Genai.SourceCollection that points to the file URL.
  3. Configure a sync schedule for the source collection.

Debugging broken workflows

If a workflow fails, its error message appears in the Workflows UI.

Viewing full execution logs

You can access detailed execution logs — including inputs and outputs for every node — to help diagnose failures:

Python
file = c3.Genai.Workflow.Observability.displayLogEntries(workflowExecution=workflow_execution, saveToLocal=False)

Workflow Logs

Additional Configuration

Example queries and authoring patterns can be pre-seeded in Genai.Workflow.Config#examples. These examples appear under the "Node Templates & Examples" panel in the Workflows UI to guide end users.
