Install on Amazon Web Services

Copy link to this section

C3 AI deployment options: guidance for enterprise customers

C3 AI offers flexible deployment models to meet the diverse needs of enterprise customers. Selecting the appropriate deployment option is a critical decision that impacts project timelines, service-level agreements (SLAs), and roles and responsibilities (RACI). This document outlines each option, highlights key considerations, and underscores the benefits of the C3 AI SaaS/PaaS Subscription, which is the recommended approach for most organizations.

Copy link to this section

1. C3 AI SaaS / PaaS subscription (preferred standard option)

The standard C3 AI SaaS/PaaS (Software as a Service / Platform as a Service) subscription is the most typical deployment option to leverage the C3 AI Platform and Applications. It is a fully hosted and managed service by C3 AI in Amazon Web Services (AWS). Customers may select their preferred AWS region for data residency.

Key Features and Benefits:

• Lower Total Cost of Ownership (TCO): Standardized technologies and processes enable rapid deployment, streamlined support, and efficient issue resolution. C3 AI maintains specific enterprise SLAs to deliver an industry-leading service with lower TCO.
• Reduced Operational Burden: Internal teams can focus on leveraging AI applications for business value, rather than managing infrastructure setup and maintenance.
• Scalability: The SaaS/PaaS model supports seamless scaling as business needs evolve. C3 AI manages all scaling needs and capacity planning required to ensure consistently available platform and applications.
• Security and Compliance: C3 AI employs industry standard cybersecurity and access control practices to safeguard customer applications and data. C3 AI holds and maintains critical compliance attestations like SOC2, ISO27001, and FedRAMP.

Why Choose SaaS/PaaS?

This model is the fastest, most cost-effective way to realize value from C3 AI products and generate AI-driven insights. It is recommended for organizations seeking minimal operational overhead and maximum agility.

Copy link to this section

2. Customer-hosted, C3 AI-managed deployment

For organizations with non-standard data residency, security, or governance requirements, C3 AI supports deployments within a customer's own Amazon Virtual Private Cloud (VPC). C3 AI Operations manages the deployment, maintenance, and support within the customer's environment.

Your organization will have responsibility for portions of the infrastructure to ensure C3 AI Operations can successfully deploy and manage C3 AI Products. Coordination with C3 AI Operations will be required for future upgrades, change, and incident management activities. Additional charges may apply to support a customer-hosted deployment.

Key Considerations:

• Customer Responsibilities:
  • Provide a dedicated AWS account for the deployment.
  • C3 AI Operations provisions the VPC via Terraform by default.
  • Provide timely and required access to C3 AI Operations for installation and ongoing support.
  • Manage and troubleshoot infrastructure changes outside C3 AI's control that may affect availability or performance.
  • Assume all infrastructure hosting costs within the customer's cloud account.
• Control and Access: Customers retain greater control and thus greater responsibility over their AWS subscription and can limit permissions granted to C3 AI.

When to Choose This Option:

This model is suitable for organizations with:

• Internal processes requiring direct control over cloud resources.
• Policies with non-standard local data residency, security, or governance requirements.

Copy link to this section

Summary table

Selecting the right deployment option is essential for project success. C3 AI strongly recommends the SaaS/PaaS Subscription for most enterprises, as it maximizes value, reduces risk, and accelerates time to insight.

If you have questions or require a tailored recommendation, please reach out to your C3 AI representative.

Copy link to this section

Pre-installation preparation

Contact your C3 AI account manager and the C3 AI Center of Excellence (CoE) to obtain:

1. IP Address Allowlist -- The set of C3 AI Operations IP addresses that must be whitelisted in your firewall and security group rules. These are required for C3 AI to access and operate your deployment.
2. CORS Domain List -- If your installation includes C3 AI Ex Machina, you will need a list of domains to whitelist for CORS. This enables file upload functionality.
3. C3 AI Cluster Validation Utility -- A validation tool you will run after infrastructure deployment to confirm your environment meets all C3 AI requirements. Obtain this from the CoE before beginning installation.
4. Terraform Module Version -- Confirm the correct version number from the C3 AI Bill of Materials (BOM) for your release.

You must also determine the following before starting:

1. Cluster Name -- Your cluster name must follow a specific naming convention. See Appendix A: Cluster Naming Convention for full details.
   • Dev/QA clusters: stgaws{customerabbreviation} (e.g., stgawscust)
   • Production clusters: prdaws{customerabbreviation} (e.g., prdawscust)
   • Lowercase only, no hyphens, no special characters, must start with a letter, 15 characters or fewer total.
2. AWS Region -- The AWS region where the deployment will occur.
3. AWS Account ID -- The dedicated AWS account for the C3 AI deployment.

Copy link to this section

Customer-hosted install requirements: checklist

Copy link to this section

Summary

For C3 AI to operate in customer-hosted AWS Cloud accounts, your organization must meet the following requirements consistently throughout the contract term. Deviations from the installation requirements incur additional operational fees.

You agree that your organization will allow C3 AI Operations to deploy all infrastructure required to support the C3 AI applications and platform per this specification and utilizes C3 AI deployment automation. This checklist only applies to customer hosted installations.

Copy link to this section

Installation and operational management checklist

For C3 AI Operations to deploy a cluster in a customer-hosted deployment, you must provide the following access, network setup, and infrastructure to C3 AI:

1. An IAM role called C3.AdminOps with temporary administrator privileges to a dedicated AWS account so that C3 AI can perform tasks to set up your deployment.

   C3 AI requires administrator privileges to set up an IAM policy and create a role that allows C3 AI Operations to perform installation, setup, and deployment tasks. You can remove administrator access after initial setup. You must grant administrator access again for new product releases and for any subsequent infrastructure changes, because the administrator role is required to read current infrastructure state.

2. An IAM role called C3.Ops with access to your dedicated AWS account so that C3 AI can manage infrastructure. This role must remain active throughout the contract term.

3. Allow C3 AI Operations to deploy and manage a Privileged Access Management (PAM) solution. C3 AI leverages an industry-standard PAM for all infrastructure access to customer-hosted deployments. This requires:

   • One-time use of an IAM role to deploy the cluster and for select infrastructure upgrades.
   • A service account created in your SSO / Active Directory used to manage the C3 AI Platform.

4. If your firewall settings prevent C3 AI Operations from configuring access to required endpoints, you must allow access to the following:

   • Routing to and from the C3 AI network so C3 AI can receive metrics, logs, and observability data to operate the deployment.
   • Connectivity to endpoints that allow C3 AI product functionality. See the full endpoint list in the Network configuration section.
   • CORS domain whitelisting if using C3 AI Ex Machina (obtain list from C3 AI CoE).

5. New VPC and subnet with at least 1024 IP addresses (/22) available for C3 deployment. Each subnet must be across three availability zones. A secondary CIDR of 172.0.0.0/16 is also required for EKS pod networking.

6. Access to C3 AI and third-party container image and library repositories (or local alternatives such as AWS ECR, JFrog, or Anaconda Enterprise).

7. Static DNS entry for C3 AI URL (for example, c3project.customer.com).

8. Public certificate with the complete chain and private key from the x509 certificate. Certificates issued by a public or an internal Certificate Authority are supported. Coordinate with the C3 AI Center of Excellence if you plan to use self-signed or internal-CA certificates so that the required trust chain can be pre-staged in the cluster.

9. EKS version 1.34.

10. Override the default PostgreSQL password. The Terraform module ships with a placeholder default (pg_password). You must provide a strong, unique password in your terraform.tfvars or via a secrets manager. Never deploy with the module default.

11. After infrastructure deployment, execute the C3 AI Cluster Validation Utility and provide the results to C3 AI Operations. All checks must pass before C3 AI Operations can proceed with platform installation.

12. After infrastructure deployment, provide C3 AI Operations with all required cluster information. See Appendix B: Post-Deployment Information Handoff for the complete list.

Copy link to this section

C3 AI installation requirements for Amazon Web Services

The C3 Agentic AI Platform integrates with core AWS services like Amazon EC2, VPC, and IAM, enabling cohesive security and infrastructure management. The platform also supports AWS-native tools such as Amazon S3 bucket for durable backups.

The C3 Agentic AI Platform requires specific AWS cloud services and infrastructure for successful deployment, as well as specific access requirements for C3 AI Operations to install, administer, and upgrade the C3 Agentic AI Platform and C3 AI Applications.

Install and upgrade requirements including Bill of Materials (BOM) details can be reviewed on the documentation site https://docs.c3.ai/versions-and-compatibility/upgrade-requirements/8.11.

The following sections describe the specific services and access needs, including network configurations and subnet requirements, security group egress and ingress rules, and subnet-level access control lists (ACLs).

Copy link to this section

Required Amazon cloud services

The table below describes the Amazon cloud infrastructure services required by the C3 Agentic AI Platform. You are required to provide the services below configured to C3 AI specifications as documented in the HashiCorp Terraform scripts.

Copy link to this section

Amazon cloud access requirements

The table below describes the access requirements for C3 AI Operations to install, administer, and upgrade the C3 AI Applications and C3 Agentic AI Platform.

To ensure security, operational excellence, and customer trust, C3 AI leverages an industry standard privileged access management (PAM) for infrastructure access and authentication. All access by our C3 AI Operations team to customer hosted deployments will be managed exclusively through this PAM solution. This approach ensures every interaction with the systems is secure, fully auditable, and aligned with industry best practices.

Why PAM and what this means for you:

• Centralized Access Control: All infrastructure access is managed through a single, secure platform, reducing complexity and risk.
• Enhanced Security: PAM enforces strong authentication and zero-trust principles, ensuring only authorized personnel can access your systems.
• Full Auditability: Every session and command is logged, providing complete visibility for compliance and security reviews.
• Rapid Access Revocation: Access can be granted or revoked instantly, minimizing exposure during personnel changes or incident response.
• Operational Efficiency: Our Operations team benefits from streamlined workflows, reducing time to resolution for support and maintenance tasks.
• Industry Best Practices: PAM aligns with leading security frameworks and compliance standards, reinforcing trust and reliability.

Requirements of the PAM solution:

• One time use of an IAM role to deploy the cluster and for select infrastructure upgrades
• Service account created in your SSO / Active Directory used to manage the C3 AI Platform
• An additional /28 CIDR IP block for the C3 Software-Defined Perimeter/Management (SDM) peered VPC

C3 AI Operations will deploy and install the PAM solution. You can request an audit log of user access by contacting C3 AI Customer Support.

Copy link to this section

Network configuration

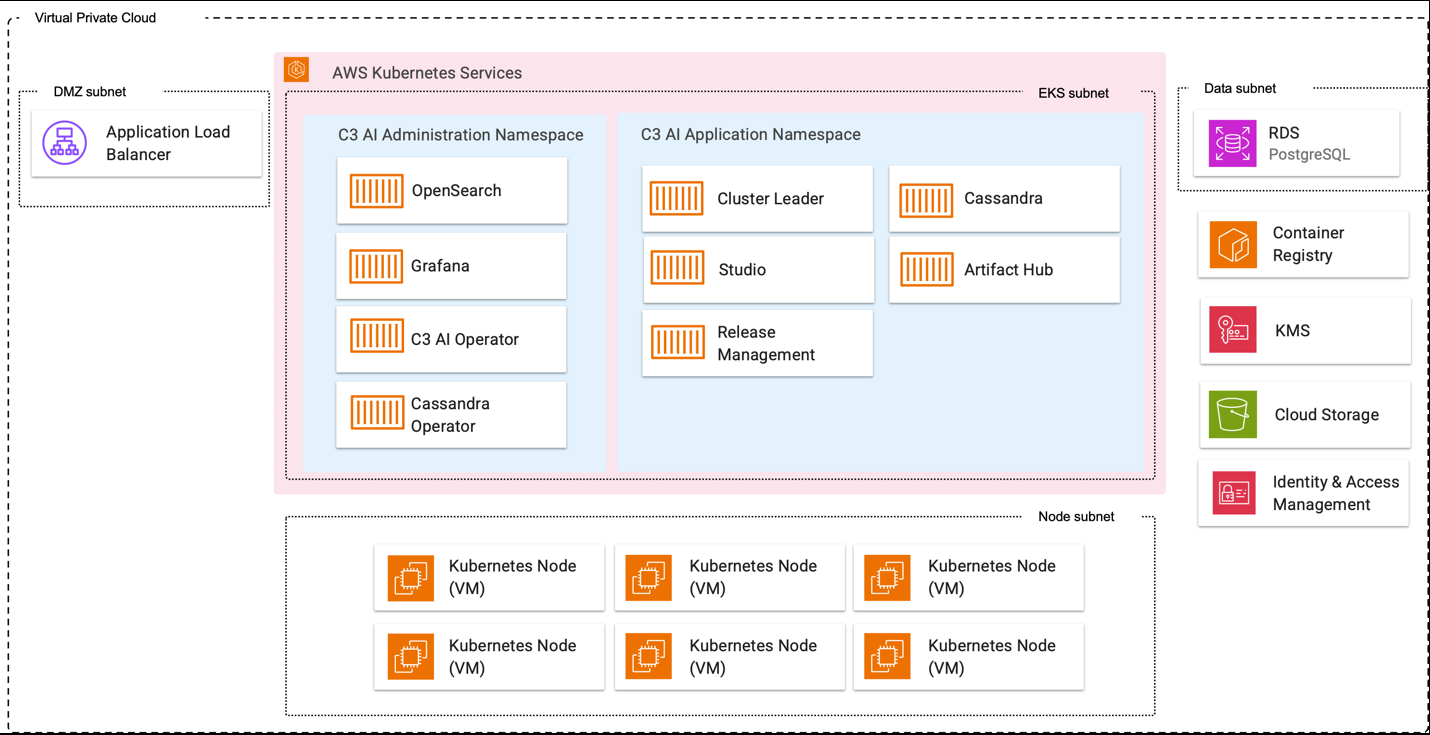

To deploy the C3 Agentic AI Platform in your own VPC, you must create the VPC following the requirements enumerated in the VPC requirements section below.

Copy link to this section

VPC requirements

Your VPC must meet the requirements described in this section to host a C3 AI cluster.

Copy link to this section

VPC region

The Amazon region where the deployment will occur. Refer to AWS documentation for a list of available regions.

Copy link to this section

VPC sizing

The C3 Agentic AI Platform requires two (2) CIDR blocks.

Copy link to this section

VPC IP address ranges

Copy link to this section

DNS

The VPC must have DNS hostnames and DNS resolution enabled.

Copy link to this section

Subnets

The Terraform module creates the following subnets within the VPC for each cluster (one subnet per availability zone, for three availability zones):

For subnet sizing options, see the "Inputs" section of the main README.md file in the downloaded C3 AI Registry folder.

• For EKS deployment, C3 AI configures two non-overlapping network address spaces. The primary VPC uses the address space 10.0.0.0/22. The Kubernetes pod network uses the secondary VPC CIDR 172.0.0.0/16, and the Kubernetes service network uses 172.16.0.0/18.

Copy link to this section

Subnet route table

The route table for workspace subnets must have quad-zero (0.0.0.0/0) traffic that targets the appropriate network device.

Copy link to this section

Additional subnet requirements

• Subnets must have outbound access to the public network using a cloud native NAT gateway and internet gateway.
• The NAT gateway must be set up in its own subnet that routes quad-zero (0.0.0.0/0) traffic to an internet gateway.

Copy link to this section

Security groups

C3 AI must have access to at least one AWS security group and no more than five security groups. You can reuse existing security groups rather than create new ones.

Security groups must include the rules described in the following subsections: Endpoint access, Egress (outbound), Ingress (inbound), and Subnet-level network ACLs.

Copy link to this section

Web Application Firewall (WAF)

The Terraform module provisions an AWS WAF (Web Application Firewall) for the cluster by default. Key configuration options:

• managed_waf_rules: Apply AWS Managed Rule Groups (e.g., AWSManagedRulesCommonRuleSet)
• waf_rate_based_rules: Configure rate limiting per IP, URI, or custom key
• waf_enforce_managed_rules: Set to true to block (not just count) managed rule matches
• waf_cloudwatch_logging_enabled: Enable CloudWatch logging of WAF events

Copy link to this section

Endpoint access

If your firewall settings prevent C3 AI Operations from configuring endpoint access, you must allow outbound access to the following endpoints to allow C3 AI product functionality. These endpoints provide access to container registries, language-runtime package repositories (Python, NodeJS, Anaconda), C3 AI artifact servers, and the vault that secures platform credentials. Blocking any of them prevents platform installation, upgrades, or runtime operations. Contact the C3 AI Center of Excellence for a per-endpoint justification if required for security review.

• conda.anaconda.org - Package repository for Conda environments and dependencies
• files.pythonhosted.org - File hosting service for Python packages distributed via PyPI
• github.com - Source code hosting and version control platform
• c3ai.grafana.net - C3 AI's Grafana-hosted monitoring and observability dashboards
• huggingface.co - Repository for pre-trained machine learning models and datasets
• jfrog.c3.ai - C3 AI's internal JFrog Artifactory instance for artifact and package management
• nodejs.org - Official Node.js runtime downloads and documentation
• npmjs.org - Package registry for Node.js/JavaScript dependencies
• prdgkemis.c3.ai - C3 AI endpoint for MIS (Management Information System) access (if required)
• pypi.org - Primary Python package index for installing Python libraries
• pypi.python.org - Legacy Python package index mirror, an alias for PyPI
• registry.c3.ai - C3 AI's private container and artifact registry
• repo.anaconda.com - Anaconda's repository for curated data science packages
• repo.continuum.io - Legacy Continuum Analytics (now Anaconda) package repository
• Cloudfront.net - Amazon CloudFront's CDN domain, used to serve cached content (files, packages, assets) from AWS edge locations worldwide.
• telemetry.c3.ai - C3 AI endpoint for collecting platform telemetry and usage data
• vault.c3iot.io - C3 AI's HashiCorp Vault instance for secrets and credentials management

You must allow outbound access to the following endpoints for C3 AI Monitoring. These IP addresses collect standard operational metrics:

• fleet-management-prod-014.grafana.net
• prometheus-prod-36-prod-us-west-0.grafana.net
• logs-prod-021.grafana.net

You must allow inbound access to the following C3 AI Operations endpoints to operate the deployment:

• 12.226.154.130/32
• 13.214.249.29/32
• 18.136.19.189/32
• 34.231.113.223/32
• 34.232.23.54/32
• 34.238.215.224/32
• 34.82.144.175/32
• 52.48.79.190/32
• 54.76.64.220/32
• 70.35.33.244/32

Copy link to this section

Egress (outbound)

• Allow all TCP and UDP access to the workspace security group (for internal traffic)
• Allow TCP 443 outbound to the endpoints listed in the Endpoint access section.

Copy link to this section

Ingress (inbound)

• Allow all TCP and UDP access to the workspace security group (for internal traffic)
• 443: for C3 AI application access
• 22: for SSH access to a bastion host

Copy link to this section

Subnet-level network ACLs

Subnet-level network ACLs must not deny ingress or egress to any traffic.

• ALLOW ALL from Source 0.0.0.0/0. This rule must be prioritized.
• Egress:
  • Allow all traffic to the C3 AI cluster VPC CIDR, for internal traffic.
  • Allow TCP 443 outbound to the endpoints listed in the Endpoint access section.

Copy link to this section

GovCloud and regulated environment support

The Terraform module supports AWS GovCloud (aws-us-gov) and commercial (aws) partitions automatically. No hardcoded partition values are used.

For GovCloud/FedRAMP deployments:

• The module automatically detects the aws-us-gov partition and constructs ARNs accordingly.
• Set vpc_endpoint_use_fips = true to use FIPS-compliant endpoint service names for EKS, STS, KMS, and EC2.
• Configure vpc_endpoint_services with the full set of required interface endpoints, as GovCloud deployments are typically air-gapped.
• S3 CORS domains must use HTTPS origins per OMB Memorandum M-15-13.

Copy link to this section

HashiCorp Terraform configuration

HashiCorp Terraform is a popular open-source tool for creating safe and predictable cloud infrastructure across several cloud providers. Terraform scripts are used to create the cloud infrastructure required by the C3 Agentic AI Platform and automate the deployment of the C3 Agentic AI Platform in your AWS account.

Copy link to this section

Getting started

In this section, you install and configure requirements to use Terraform. You then configure Terraform authentication. Following completion of this section, you go to the "Installation Steps" section below to deploy and configure the cloud infrastructure required by the C3 Agentic AI Platform.

Copy link to this section

Requirements

To use Terraform to create cloud infrastructure resources required by the C3 Agentic AI Platform in your AWS account, you must have the following:

• An AWS account.
• On your local development machine, you must have:
  • The HashiCorp Terraform CLI. See Install Terraform on the Terraform website to download the binary of the required Terraform version specified in the main.tf file example in the "Installation Steps" section below. Select AMD64 or ARM64 depending on the which matches the client hardware from which you will run the Terraform scripts.
  • The AWS CLI
  • The eksctl command-line tool. See Install eksctl on the Amazon EKS website.
• Privileges to deploy, operate, and delete the infrastructure services. See the "README.md" file in the downloaded Registry folder for the most up-to-date information.
• The following environment variables:
  • AWS_ACCESS_KEY_ID, set to the value of your AWS user's access key ID. See Programmatic access in the AWS General Reference.
  • AWS_SECRET_ACCESS_KEY, set to the value of your AWS user's secret access key. See Programmatic access in the AWS General Reference.
  • AWS_REGION, set to the value of the AWS Region code for your AWS account. See Regional endpoints in the AWS General Reference.

Copy link to this section

Installation steps

Installation of the C3 Agentic AI Platform on AWS is a multi-step process due to limitations of Terraform and AWS-specific configuration requirements. The installation process is the following:

1. Create the VPC and required AWS services (bootstrap module, then c3cluster module).
2. Grant C3 AI Operations access to EKS as a Kubernetes administrator.
3. Configure EKS node pools (choose a node pool strategy).
4. Validate the VPC and configuration of required AWS services.
5. Provide C3 AI Operations access to the cluster.
6. C3 AI Operations completes the installation of the C3 Agentic AI Platform.

To create a VPC, C3 AI requires the use of HashiCorp Terraform and will provide a set of Terraform scripts to assist you in the creation of the VPC and required AWS Services. If you are unfamiliar with Terraform, review their Get Started -- AWS documentation.

A description of the Terraform modules is below. See the README.md file in the downloaded Registry folder for the most up-to-date information.

In addition to the required tools listed in the "HashiCorp Terraform Requirements" section, install TFSwitch, which is a tool used to switch easily between Terraform versions. See Install TFSwitch and TFSwitch Quick Start on the TFSwitch website for more information.

Copy link to this section

1. Create the VPC and required AWS services

This guide shows you how to create the cloud infrastructure services required by the C3 Agentic AI Platform using HashiCorp Terraform on AWS.

Copy link to this section

1.1 Run the bootstrap module

This module creates the necessary IAM roles and policies to configure the VPC and required AWS services. Configure a new main.tf file below, replacing the CAPITALIZED variable names with your values.

module "bootstrap" {
  source       = "<c3_url>/tf-registry__c3/aws/c3//modules/bootstrap"
  version      = "VERSION_NUMBER"
  cluster_name = "CLUSTER_NAME"  # Replace with name of c3 deployment
  account_id   = "AWS_ACCOUNT_ID"
  region       = "REGION"

  # Trusted identities ARN who will be allowed to assume the infrastructure creation role
  trusted_identifier_arns = ["TRUSTED_IDENTITY_ARN"]
}

provider "aws" {}

terraform {
  required_version = ">=1.13.0"
  required_providers {
    aws = {
      source  = "hashicorp/aws"
      version = "6.28.0"
    }
  }
}

NOTE: Replace:

• CLUSTER_NAME with the name of the C3 AI cluster. See Appendix A for naming rules.
• VERSION_NUMBER with the version of the bootstrap module listed on the C3 AI BOM for the release version.
• TRUSTED_IDENTITY_ARN -- List of AWS accounts and IAM users who are authorized to manage C3 infrastructure.
• REGION with the AWS region code (e.g., us-east-1).

1.2 After configuring the main.tf file, run the following Terraform commands from the same directory:

tfswitch
terraform init
terraform plan --out out.plan
terraform apply "out.plan"

Copy link to this section

1.3 Run the c3cluster module

This module coordinates execution of all other Terraform modules. Configure a new main.tf in a separate directory from the bootstrap module, replacing the CAPITALIZED variable names with your values. Note that you must assume the IAM_ROLE_NAME role created by the bootstrap module, which is typically formatted as follows: ${CLUSTER_NAME}_c3icrole-01 in the default Terraform scripts. For more details see https://repost.aws/knowledge-center/iam-assume-role-cli.

Contact your account manager for the list of IP addresses required by C3 AI. These values will be used to update the ip_allowlist section below.

module "c3cluster" {
  source       = "<c3_url>/tf-registry__c3/aws/c3"
  version      = "VERSION_NUMBER"
  cluster_name = "CLUSTER_NAME"  # Replace with name of c3 deployment
  c3_region    = "REGION"
  ip_allowlist = [
    {
      cidr_blocks  = ["CIDR_TO_WHITELIST"],
      display_name = "WHITELISTED_CIDR_NAME"
    }
  ]
  # Please reach out to C3 CoE to obtain the list of Domains to whitelist for CORS
  s3_cors_domains = ["https://*.DOMAIN_NAME"]
}

provider "aws" {}

terraform {
  required_version = ">=1.13.0"
  required_providers {
    aws = {
      source  = "hashicorp/aws"
      version = "6.28.0"
    }
  }
}

NOTE: Replace:

• CLUSTER_NAME with the name of the C3 AI cluster. See Appendix A for naming rules.
• VERSION_NUMBER with the version of the c3cluster module listed on the C3 AI BOM for the release version.

Copy link to this section

1.3.1 Implement CORS policy for C3 AI Ex Machina

If the installation of the C3 Agentic AI Platform includes C3 AI Ex Machina, setting the C3 AI CORS domain is all that is necessary. The CORS policy facilitates file uploads for C3 AI Ex Machina.

See s3_cors_domains in the main.tf example above.

Also, see the cors_rules.tf template example in the Terraform modules for more configuration details.

After creating the main.tf file, run the example below from the same directory as the main.tf file:

tfswitch
terraform init
terraform plan --out out.plan
terraform apply "out.plan"

Copy link to this section

1.4 Configure EKS node pools

The Terraform module supports three node pool strategies:

Default instance types: r6a.4xlarge (general), g4dn.metal (GPU), c6a.2xlarge (observability), r6a.2xlarge (logs), r6a.xlarge (Cassandra).

Security: All node groups enforce IMDSv2 by default (http_tokens = "required"). If your workloads require IMDSv1, set default_nodegroup_http_tokens = "optional" or configure per-pool via eks_custom_node_pools.

Copy link to this section

2. Grant C3 AI Operations access to EKS as a Kubernetes administrator

2.1 Create and attach policy to C3 AI Operations IAM users giving permissions to assume the Infrastructure Management IAM role and generate kubeconfig.

Create the policy by doing the following:

1. In the AWS Identity and Access Management (IAM) dashboard, go to IAM > Policies.
2. In the Permissions tab, select Create Policy to enter the following JSON.

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Sid": "Statement1",
      "Effect": "Allow",
      "Action": [
        "sts:AssumeRole"
      ],
      "Resource": [
        "arn:aws:iam::ACCOUNTID:role/CLUSTER-c3icrole-01"
      ]
    },
    {
      "Sid": "ManageOwnAccessKeys",
      "Effect": "Allow",
      "Action": [
        "iam:CreateAccessKey",
        "iam:DeleteAccessKey",
        "iam:GetAccessKeyLastUsed",
        "iam:GetUser",
        "iam:ListAccessKeys",
        "iam:UpdateAccessKey",
        "iam:TagUser"
      ],
      "Resource": "arn:aws:iam::ACCOUNTID:RESOURCE_TYPE"
    }
  ]
}

NOTE: Replace:

• CLUSTER with the name of the EKS cluster. See Appendix A for naming rules.
• REGION with AWS region code associated with the EKS cluster.
• ACCOUNTID with ID of the AWS account that owns the resource, without the hyphens. For example, 123456789012.
• RESOURCE_TYPE with user, group, or the resource type to be assigned to the user. Use the value set in Step 2.1.

Attach the JSON policy to the C3 AI Operations IAM user by doing the following:

1. In the Entities Attached tab, select IAM Users from the Entity Type drop-down menu, and enter the applicable Entity Names.
2. Then, click Attach Policy.

Once creation of the EKS identity mapping is complete, notify C3 AI Operations and they will complete the configuration of the EBS CNI driver, Kubernetes Autoscaler, Kubernetes Metrics Server, and the Calico network policy engine for EKS.

Copy link to this section

3. Validate the VPC and configuration of required AWS services

After the VPC and required cloud services are configured, you are required to execute the C3 AI Cluster Validation Utility and provide the results to C3 AI. If all checks performed by the C3 AI Cluster Validation Utility pass, the VPC is suitable for C3 AI Operations to deploy the C3 Agentic AI Platform on the Kubernetes cluster.

Once the checks are successfully completed, provide C3 AI Operations access to the cluster. Refer to the subsequent section for more information.

Copy link to this section

3.1 Run the C3 AI Cluster Validation Utility and provide results to C3 AI Operations

Contact the C3 AI Center of Excellence (CoE) for more information and to obtain the C3 AI Cluster Validation Utility. You should have obtained this during the Pre-Installation Preparation step.

Run the C3 AI Cluster Validation Utility to determine whether the infrastructure requirements are fulfilled to allow the C3 AI Operations to deploy the C3 Agentic AI Platform.

If the C3 AI Cluster Validation Utility indicates the VPC is ready for C3 AI Operations to deploy the C3 Agentic AI Platform on the Kubernetes cluster, provide the output to C3 AI Operations.

If the output indicates the VNet is not ready, remediate all exceptions and rerun the C3 AI Cluster Validation Utility.

Copy link to this section

3.2 Provide C3 AI Operations access to the cluster

In addition to the output of the C3 AI Cluster Validation Utility, you must provide C3 AI Operations with the information listed in Appendix B: Post-Deployment Information Handoff.

Copy link to this section

4. Complete installation

C3 AI Operations completes the installation of the C3 Agentic AI Platform.

With the infrastructure properly configured, C3 AI Operations will continue with the installation of the C3 Agentic AI Platform.

At the conclusion of the VPC creation and the deployment of the C3 Agentic AI Platform, the AWS Cloud environment will resemble the architecture shown in Figure 1 above.

Copy link to this section

Common issues and troubleshooting

The following issues are commonly encountered during infrastructure deployment. Review these before contacting C3 AI support.

Copy link to this section

EKS cluster cannot access the internet

Cause: NAT Gateway or Internet Gateway is misconfigured, or route tables are not pointing to the correct targets.

Solution: Verify that the NAT Gateway is deployed in its own dedicated subnet with a route to the Internet Gateway. Verify that private subnet route tables have a 0.0.0.0/0 route pointing to the NAT Gateway.

Copy link to this section

C3 AI Operations cannot access the bastion host

Cause: C3 AI Operations IP addresses are not whitelisted in security groups or network ACLs.

Solution: Verify that all C3 AI Operations IP addresses (obtained during pre-installation preparation) are included in the security group ingress rules for port 22 (SSH) and port 443. Verify that subnet-level network ACLs are not denying traffic.

Copy link to this section

Certificate validation fails

Cause: The issuing Certificate Authority's trust chain is not present in the cluster.

Solution: If using a certificate from a public Certificate Authority, verify the certificate chain file is included alongside the certificate. If using a certificate from an internal Certificate Authority or a self-signed certificate, coordinate with the C3 AI Center of Excellence to pre-stage the required trust chain in the cluster before resubmitting the certificate.

Copy link to this section

Cluster validation utility reports failures

Cause: One or more infrastructure requirements are not met.

Solution: Review the specific validation failures reported by the utility. Remediate each issue according to the error messages. Re-run the validation utility after remediation. All checks must pass before C3 AI Operations can proceed.

Copy link to this section

RDS PostgreSQL is inaccessible from EKS

Cause: Security group rules or subnet configuration are preventing traffic between the EKS subnets and the data subnets where RDS is deployed.

Solution: Verify that the RDS instance is deployed in the data subnets. Verify that security group rules allow traffic from the EKS security group to the RDS security group on port 5432.

Copy link to this section

Terraform apply fails with permission errors

Cause: You are not assuming the correct IAM role, or the role does not have sufficient permissions.

Solution: Verify that you are assuming the IAM role created by the bootstrap module (typically {CLUSTER_NAME}_c3icrole-01). See https://repost.aws/knowledge-center/iam-assume-role-cli for instructions on assuming a role via the AWS CLI.

Copy link to this section

Terraform apply fails with "Command not found: Terraform"

Cause: The Terraform binary is not in your system PATH.

Solution: Install Terraform using TFSwitch or download the correct binary from the HashiCorp website. Run tfswitch in your working directory to select the correct version. See the Get Started in AWS -- Install Terraform page on the HashiCorp Terraform website.

Copy link to this section

Appendix A: Cluster naming convention

The cluster name is used throughout the deployment to name AWS resources, IAM roles, security groups, subnets, and Kubernetes objects. Choosing a name that follows the required convention is critical. Changing a cluster name after deployment requires rebuilding infrastructure.

Copy link to this section

Format

Copy link to this section

Rules

All of the following rules are strictly enforced:

1. Must start with a letter -- cannot start with a number.
2. Lowercase only -- no uppercase letters are allowed.
3. No hyphens -- the - character is not allowed.
4. No special characters -- only lowercase letters (a-z) and numbers (0-9).
5. No diacritics -- no accented letters (e.g., e, n, u).
6. Maximum length -- 15 characters total.
7. Required prefix -- must begin with stg (for dev/QA) or prd (for production).
8. Required cloud indicator -- must include aws immediately after the environment prefix.

Copy link to this section

Valid examples

• stgawscust
• prdawsacme
• stgawstest01
• prdawscorp

Copy link to this section

Invalid examples

Copy link to this section

Appendix B: Post-deployment information handoff

After infrastructure deployment is complete, you must provide C3 AI Operations with the following information. Gathering this information in advance will accelerate the platform installation.

Copy link to this section

Support and escalation

For questions during installation:

• Contact the C3 AI Center of Excellence (CoE). Obtain contact details from your C3 AI account manager.

For critical installation blockers:

• Contact your assigned C3 AI account manager directly.

For post-installation platform issues:

• Contact C3 AI Customer Support. Obtain portal access details from your C3 AI account manager.
