Add a navigation menu to the application
This tutorial explains how to create a navigation menu and add it to a page.
Create a navigation menu
Add a new JSON file in examplePackage/ui/c3/meta:
examplePackage
├── examplePackage.c3pkg.json
└── ui
└── c3
└── meta
├── examplePackage.PageLayout.json
├── examplePackage.TurbineGrid.json
└── examplePackage.NavMenu.jsonDefine the UiSdlNavMenu in examplePackage.NavMenu.json:
/* examplePackage/ui/c3/meta/examplePackage.NavMenu.json */
{
"type": "UiSdlConnected<UiSdlNavMenu>",
"component": {
"itemSections": [
{
"items": [
{
"id": "home",
"title": "Home",
"icon": "house",
"redirectRoute": {
"urlPath": "/"
}
}
]
}
]
}
}This basic example defines a navigation menu with one item. The itemSections field contains an array of UiSdlNavMenuSections, each with an items array of UiSdlNavMenuItems. The title represents the displayed text, icon specifies a Font Awesome icon, and redirectRoute defines the UiSdlRoute destination.
To add a second item with a subMenu:
/* examplePackage/ui/c3/meta/examplePackage.NavMenu.json */
{
"type": "UiSdlConnected<UiSdlNavMenu>",
"component": {
"itemSections": [
{
"items": [
{
"id": "home",
"title": "Home",
"icon": "house",
"redirectRoute": {
"urlPath": "/"
}
},
{
"id": "turbines",
"title": "Turbine",
"icon": "wind-turbine",
"subMenu": {
"title": "Wind Turbines",
"items": [
{
"type": "UiSdlNavMenuitem",
"id": "WindTurbine1",
"title": "Wind Turbine 1",
"redirectRoute": {
"urlPath": "turbines/WindTurbine1"
}
},
{
"type": "UiSdlNavMenuitem",
"id": "WindTurbine2",
"title": "Wind Turbine 2",
"redirectRoute": {
"urlPath": "turbines/WindTurbine2"
}
}
]
}
}
]
}
]
}

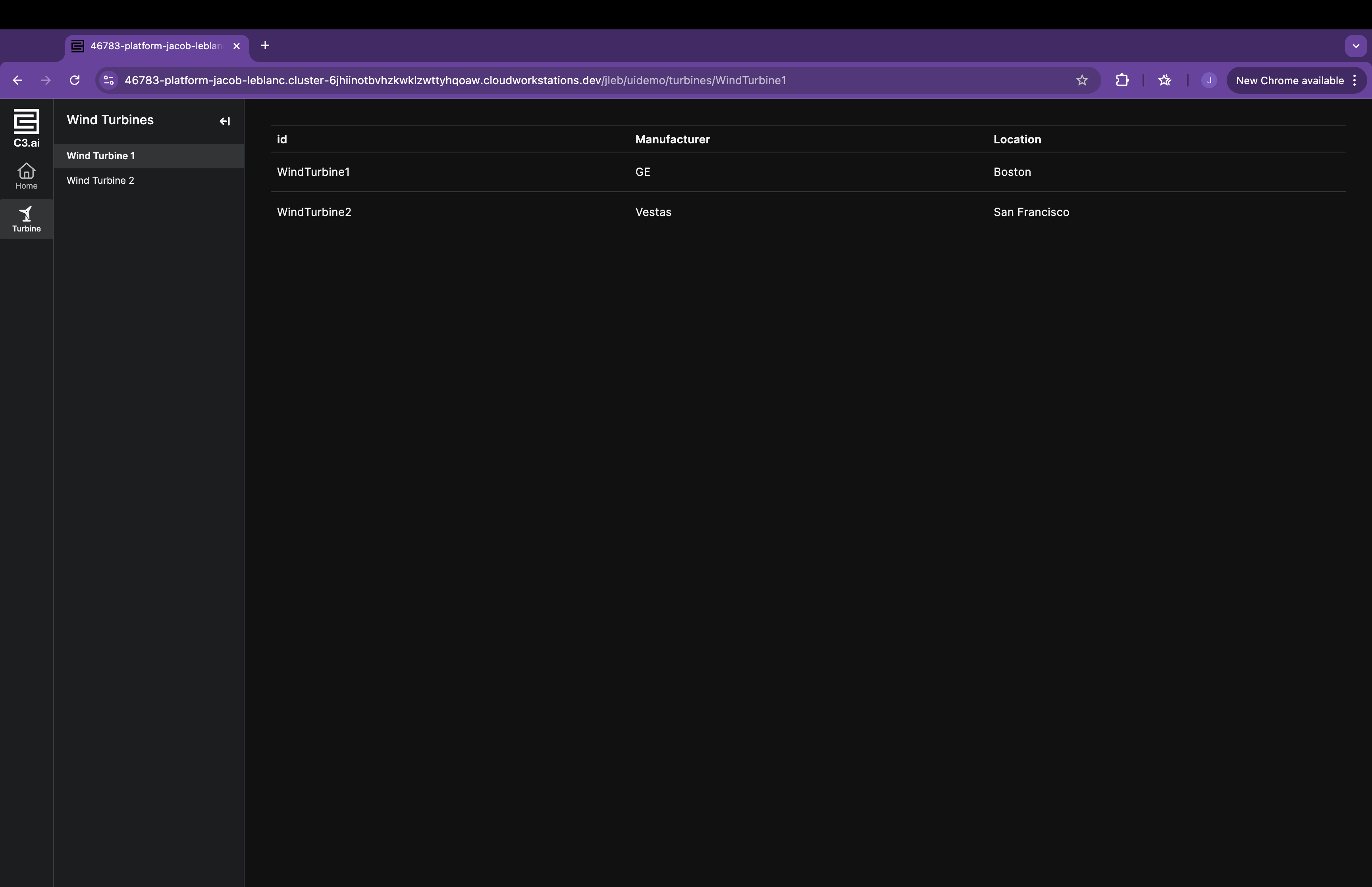

}This example adds a subMenu under Turbine. Clicking Turbine expands the submenu.
Add a navigation menu to a page
To add the navigation menu to a page, modify examplePackage.PageLayout.json:
/* examplePackage/ui/c3/meta/examplePackage.PageLayout.json */
{
"type": "UiSdlConnected<UiSdlGridLayout>",
"component": {
"gridStyle": "FLUID",
"gutter": 8,
"display": "VERTICAL",
"children": ["examplePackage.TurbineGrid"],
"navMenu": {
"id": "examplePackage.NavMenu"
}
}
}UiSdlGridLayout includes a specific field for adding a navigation menu. Adding the menu in this way ensures it appears as expected.
